Endo Probes
|
Applications |
Ophthalmology
|
Trabculotomy, vitrectomy |

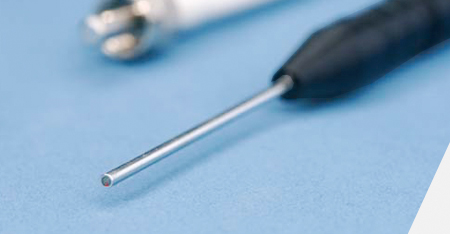

The probes are characterized by their high-quality, ergonomical design and have an anodised metal hand piece.
Properties of Ophthalmic Probes
- Excellent mechanical and optical quality
- Fibers centric in the cannula, minimal adhesive gap
- ETO-sterilised, double packed (pouch in pouch)
- Available low NA = 0.11*
- Many connector types available (F-SMA, FC/PC, ceramic ferrules, etc.)
- Available with core diameter of 100 μm
- Laser inscription possible (handpiece and/or extension sleeve)
- Endoprobes available in 20, 23, 25 gauge
- Cycloprobe with ball made from fiber material, Ø 900 μm
- Retinopexy probe with laterally decoupling laser beam
- Straight (S), curved (C), retractable (R), aspirating (A) versions available
|
Type Designation |
Silica Core Ø [μm] |
Silica Clad Ø [μm] |
Hard Clad |
Fiber Coating Ø [μm] |
Wavelegth |
|
LGO-Endo Probe Straight SMA905 |
214 |
240 | No hard clad | 265 | 300-1100 |
|
LGO-Endo Probe Curved SMA 905 |
214 |
240 | No hard clad | 265 | 300-1100 |
|
LGO-Endo Probe Straight SMA 905 |
214 |
240 | No hard clad | 265 | 300-1100 |
|
LGO-Endo Probe Curved SMA 905 |
214 |
240 | No hard clad | 265 | 300-1100 |
-Other specifications can be produced according to customers requirements.
